Combination windows are a popular choice for customers who want some ventilation in their large living room, dining room or even master bedrooms.

They are also a great option for providing an opening without obstructing the view, as well as preventing potential break-ins.

This kind of replacement is quite common, though under certain conditions they require more attention than a singular window replacement.

A big factor to consider when deciding on combination windows is whether you want the profiles of the operable and non-operable units to match. Many customers initially think that they are ok with the difference in profiles, only to change their mind once they see what the product looks like installed.

The pictures below demonstrate the difference.

casement_picture_picture_combination
Casement – Picture (low profile) – Picture combination

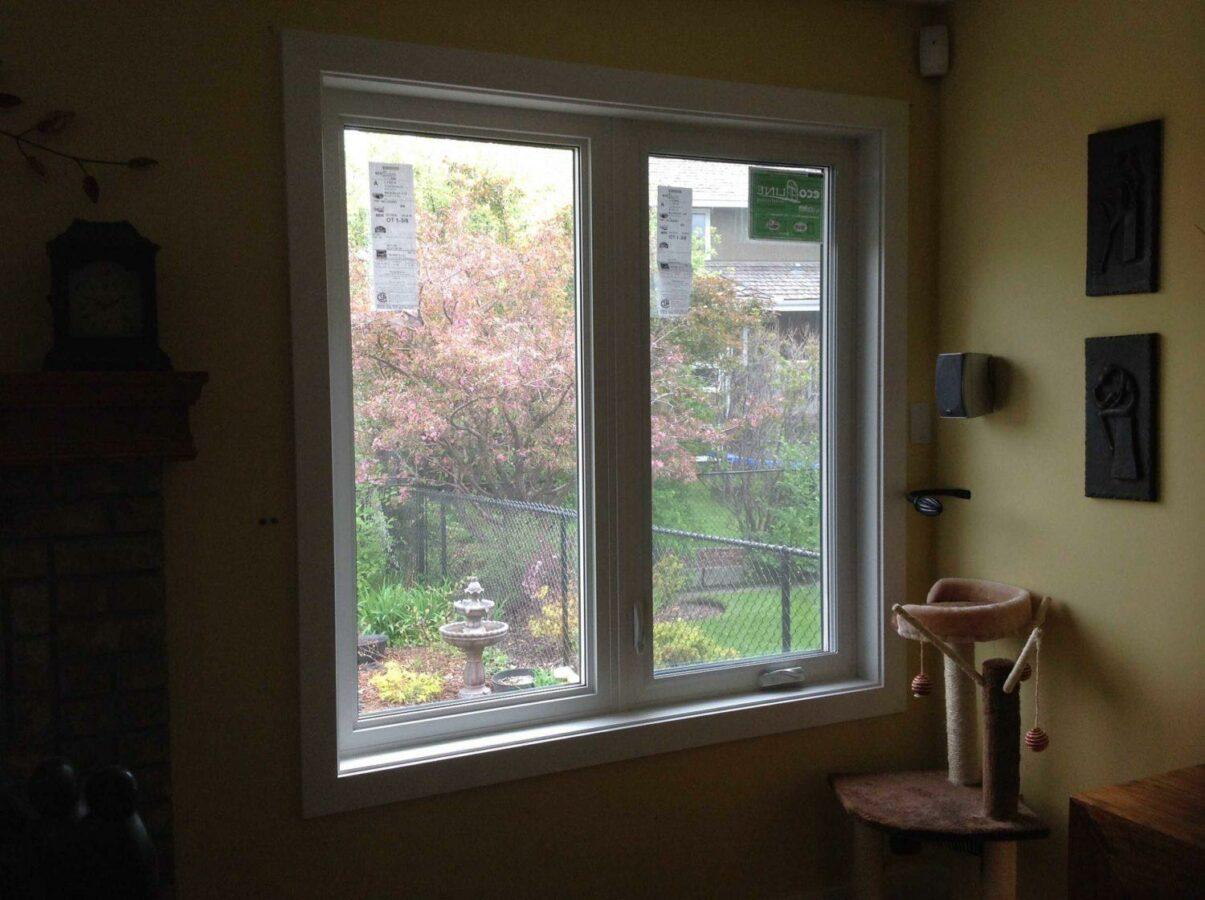

casement_fix_combination
Fixed (High Profile) – Casement Combination. As you can see high profile fixed windows match perfectly with the profile of the casement windows.



There are also specific considerations to be taken in combinations that have a slider window on the bottom. In bigger sizes, the weight of the top window sometimes impedes on the slider below, making it more difficult to open and close.

Combination window with a picture on top of a slider
Picture-Slider combination window.

An important structural component of combination windows is the reinforcement bars. Reinforcement bars are generally used in all combinations with vertical connections, and especially wide horizontal joints. The purpose of the bar is to evenly distribute the weight and ensure the windows are properly secured in their place.
Reinforcement bars help keep combination windows securely in place

Based on the type and size of the windows different window manufacturers have specific dimensions that require reinforcement. Make sure to ask about this if you are considering combinations for your replacement.

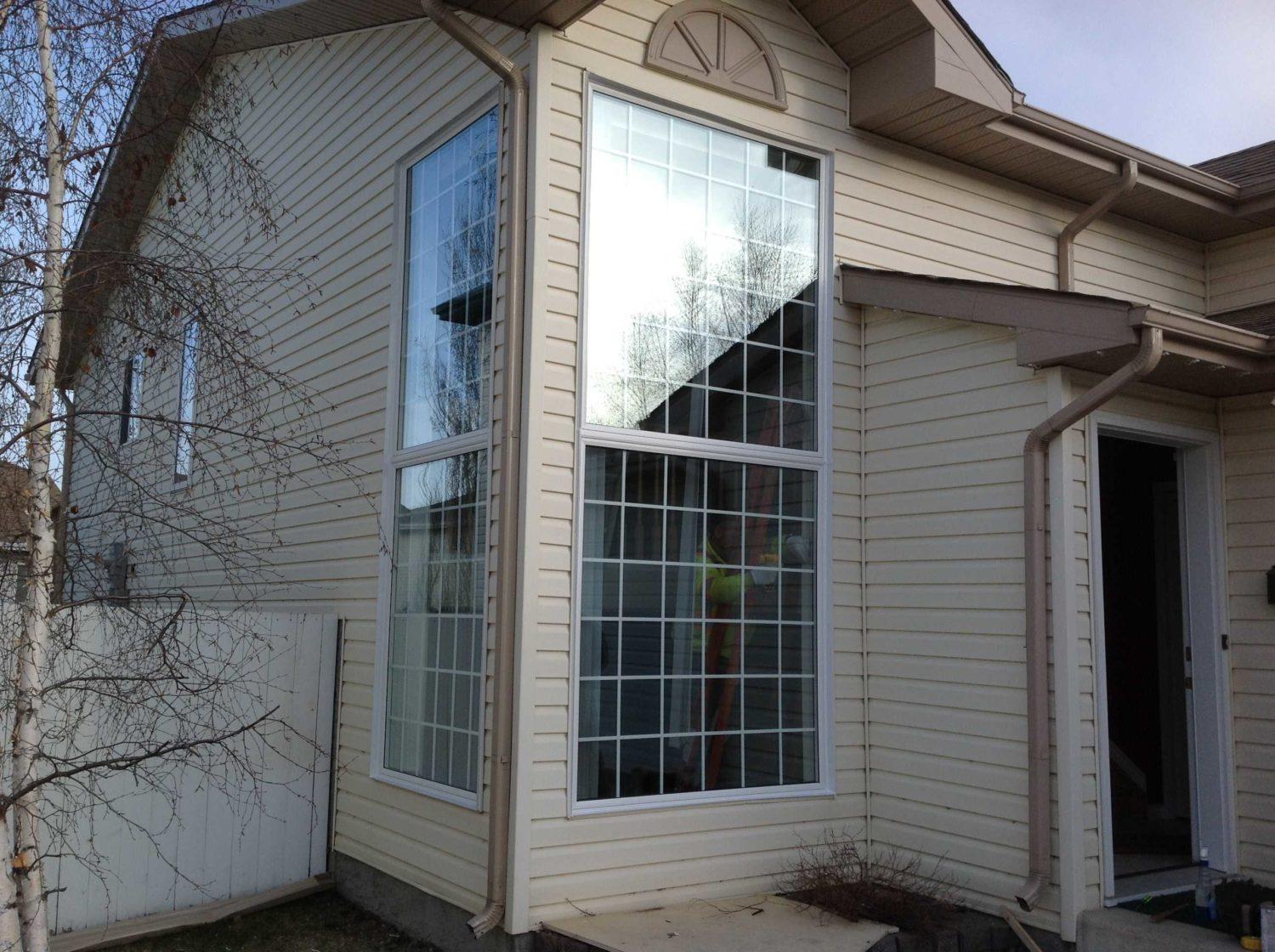

picture_picture_combination_window
A combination of two picture windows in an oversize opening.

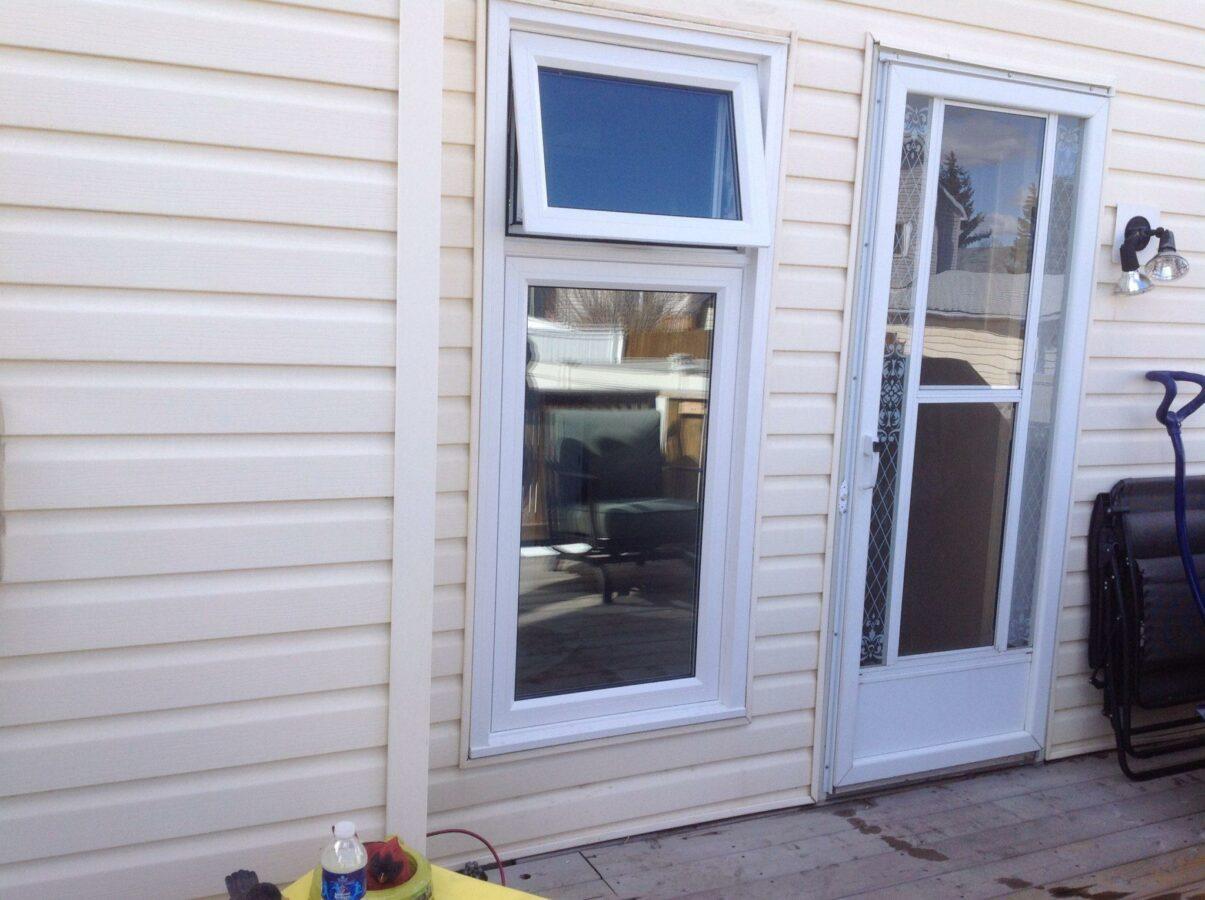

awning_fix_combination
A combination of an awning window on top of a fixed window.
picture_shape_combination_window
A combination of shaped and picture windows.
