Ecoline Patio Doors
Patio Doors slide on a track with one operable and one stationary door. They provide comfortable access to your space while creating an unobstructed view outside.
Built in Canada
Calculators
Rebate
Looking for a rebate for your new
Patio Doors?
- Up to $5000 financial support
- $250 per rough opening
- Homeowners across Canada
- ENERGY STAR-certified products
Want to apply?
Contact Ecoline Experts!
Types Of Patio doors

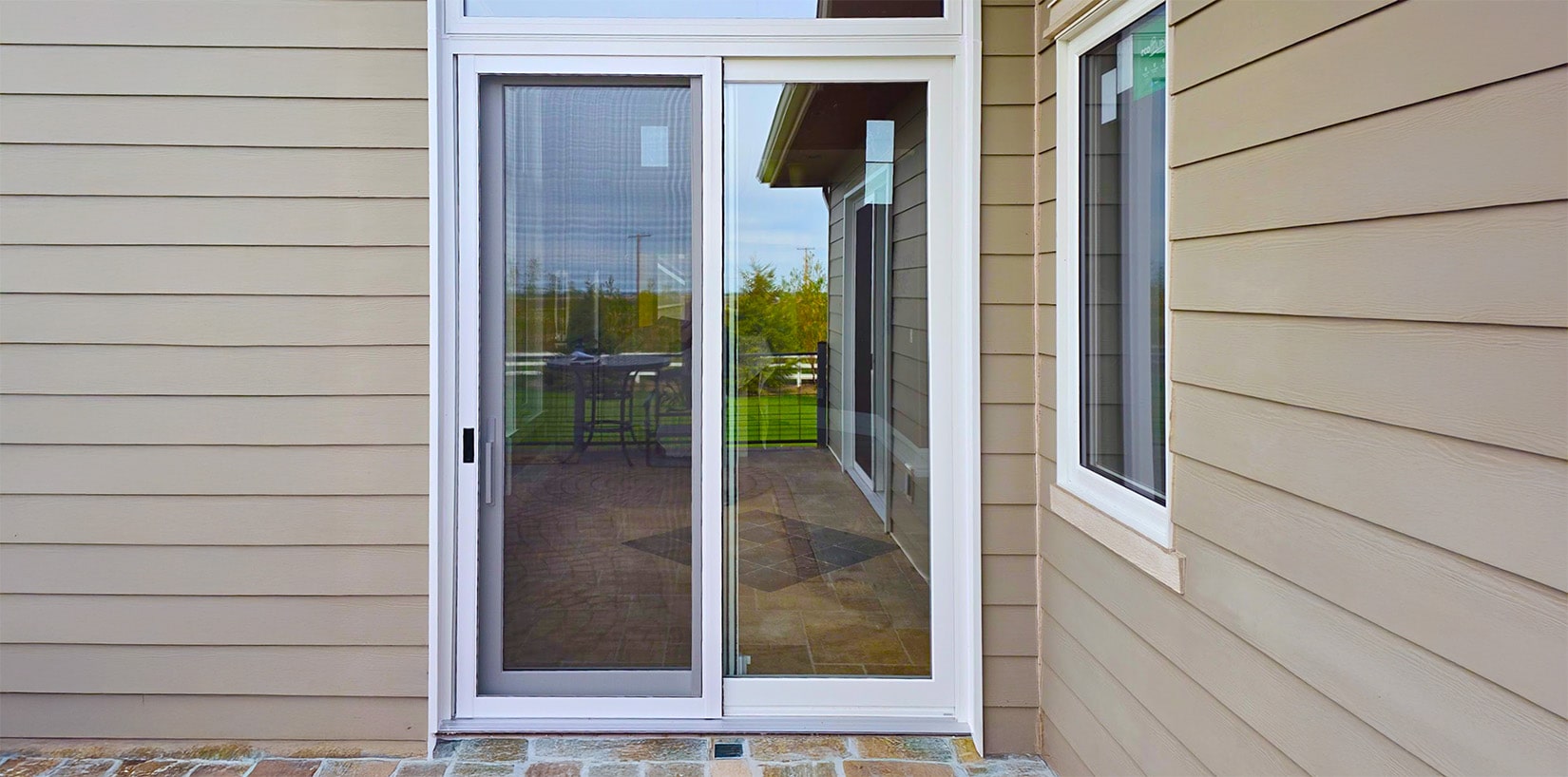

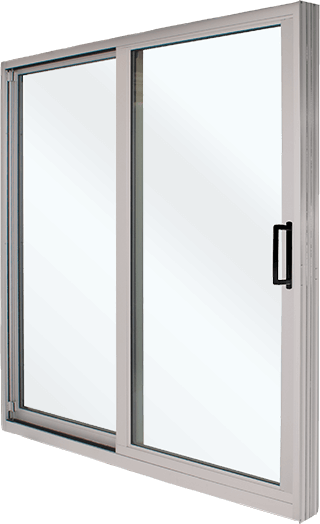

Patio Doors: What are They?

Ecoline’s replacement Patio Doors are made from the same high-quality vinyl, just like all our replacement windows. You are welcome to customize your new Patio Doors with different colours, frames, and extra features to complement any design.
These units can be fit for any standard or custom-sized openings up to 12 feet wide. Narrow profile trims are available for a larger viewing area, and a sliding screen is included with every patio door to provide optimal ventilation.
Sizes

OX-Slide left

XO-Slide Right
2 Panels |
---|
581/2 W x 791/2 H |
591/2 W x 791/2 H |
591/2 W x 811/2 H |
591/2 W x 951/2 H |
701/2 W x 791/2 H |
711/2 W x 791/2 H |
711/2 W x 811/2 H |
711/2 W x 951/2 H |
951/2 W x 791/2 H |
Extra Wide 951/2 W x 811/2 H |
Extra Wide 951/2 W x 951/2 H |

OXO-Slide R to L or OZO-Slide L to R

XOO-Slide R or OOX Slide L
3 Panels |
---|
88 3/4 W x 79 1/2 H |
88 3/4 W x 81 1/2 H |
88 3/4 W x 95 1/2 H |
106 3/4 W x 79 1/2 H |
106 3/4 W x 81 1/2 H |
106 3/4 W x 95 1/2 H |
142 3/4 W x 79 1/2 H |
Extra Wide 142 3/4 W x 81 1/2 H |
Extra Wide 142 3/4 W x 95 1/2 H |

OXXO-Slide R and Slide L from Centre
4 Panels |
---|
1171/8 W x 791/2 H |
1171/8 W x 811/2 H |
1171/8 W x 951/2 H |
1411/8 W x 791/2 H |
1411/8 W x 811/2 H |
1411/8 W x 951/2 H |
1891/8 W x 791/2 H |
Extra Wide 1891/8 W x 811/2 H |
Extra Wide 1891/8 W x 951/2 H |
Windows replacement: Case Studies

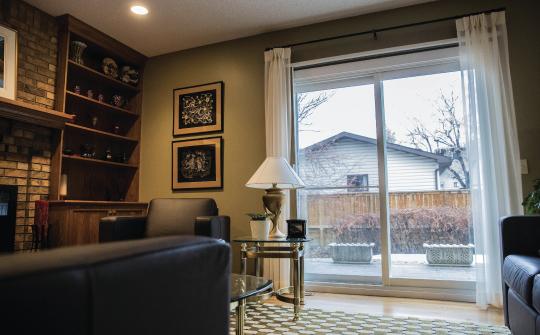

Patio Door | |
---|---|
Stylish and easy to operate patio doors. A combination of triple-pane glazing and Argon allow for maximum energy efficiency. | |
Window Type | Patio Door Triple Glaze, LoE + Argon |
Location | Main floor |
Budget (range) | $2,000 – $2,200 |
Timeframes | 6-8 weeks |
Replacement & Installation
Patio Doors Installation
Patio Doors are made of one fixed unit and another operable one. The vinyl frame makes your new Patio Doors durable, great-looking and energy-efficient. The installation is done by our in-house installers, who are skilled and experienced.
Patio Door Replacement
Patio Doors replacement is perfect in case your old and drafty units are worn out and need new Patio Doors for energy efficiency and comfort. As with regular replacements, ensure that everything is discussed with your project consultant and put on paper before signing the contract.
Manufacturer

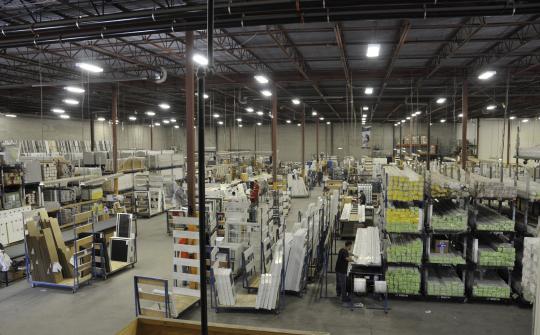

Ultimate process control
Our Patio Doors are manufactured in a state of the art facility with all the key component fabrication processes needed to make the most energy-efficient and reliable units on the market. With everything under one roof—from the insulated glass unit fabrication to PVC profile bending to painting—all quality and service levels can be managed seamlessly and proficiently.
With a lifetime of experience in the window and door industry, Ecoline has a unique understanding of the complexities and intricate details associated with designing and manufacturing Patio Doors for new constructions or custom home markets.

NFRC
Ecoline Patio Doors are manufactured in a facility that operates under stringent quality processes imposed by NFRC certification programs. This ensures that your new units meet the highest quality standards.

NAFS-11
Ecoline windows are among the few lines that meet NAFS-11. These high standards can be met when Sliding Patio Doors meet certain performance grades in Canada. This is difficult to achieve.
Installer Team
Correct installation is a very important part of successful Patio Doors replacement. Each unit is custom-made to accommodate the existing opening. We use spray insulation, which minimizes drafts, and seals your doors from the outside.
When removing your old Patio Doors, our installers ensure that there are no rotting frames. They replace any faulty frame components before inserting new units.
Our installations are always done in accordance with Canadian Standards Association (CSA) guidelines and your local building codes. We only work with in-house installers that specialize in residential Patio Doors replacements.
We have an excellent rating with the Better Business Bureau(A+) and HomeStars (98% positive reviews). This ensures that all work is done to the highest standard.
When the installation is complete, our professional installers make sure that all the construction debris is cleaned up, waste is removed, and your residence is left clean. As part of our warranty, our dedicated service team is there to take care of your Patio Doors in the event any problems arise.
Window Installers With WCB: Workers Compensation Board.
Colour
Patio Doors Frame Colours
With Ecoline’s large selection of exterior standard, paint-to-order, and interior colour matching program, the possibilities are endless for coordinating your new Patio Doors colours with the home’s exterior/interior. The most popular options are Black Patio Doors White Patio Doors, Commercial brown, Chestnut Brown, Sable, Slate Grey Sliding Patio Doors, or Cream.








Price by Locations
*Note that the prices given in the table are approximate.
Garden patio door | $329 – $1,356 |
---|---|
Backyard sliding screen door | $484 – $1,614 |
Kitchen patio doors | $545 – $1,304 |
Performance
Configuration |
Performance Class and Grade |
Air Leakage |
Water Penetration Resistance |
Design Pressure |
---|---|---|---|---|
OX / XO | LC-PG55 | A3-0.2 L/s-m² | 400 Pa (8.4 psf) | ±2640 Pa (±55 psf) |
OX / XO | LC-PG35 | A3-0.4 L/s-m² | 400 Pa (8.4 psf) | ±1680 Pa (±35 psf) |
OXO | R-PG50 | A3-0.3 L/s-m² | 360 Pa (7.5 psf) | ±2880 Pa (±60 psf) |
OXO | LC-PG40 | A3-0.3 L/s-m² | 360 Pa (7.5 psf) | ±1920 Pa (±40 psf) |
OXXO | LC-PG35 | A3-0.5 L/s-m² | 260 Pa (5.4 psf) | ±1680 Pa (±35 psf) |
Our Offices & Showrooms in Canada
Double & Triple Glazing for Patio Doors
Glass panes are the largest area of any patio door and the most vulnerable to heat loss and gain. To provide adequate thermal performance for harsh prairie climates, a minimum of 2 panes are required. Traditional 7/8″ double glazing options are used and can accommodate 1-1/4″ for all Patio Doors.

In areas with prolonged low winter temperatures, triple pane glazing can be especially beneficial. Ecoline triple glass packages qualify for high energy-rating standards with 1-3/8″ and 1-1/4″ options available. Can be used in combination with gas injection and/or LoE glass coatings but are not necessary.
Find out more benefits of triple pane windows over double pane

F.A.Q.
How much does it cost to install Patio Sliding Doors?
The average cost of Patio Doors depends on multiple factors, such as glazing, painting, frame and other add-ons. For the precise quote, don’t hesitate to get in touch with Ecoline’s sales department.
How wide is a Patio door?
Ecoline Patio Doors can be fit for any standard or custom-sized openings up to 12 feet wide.
How to remove the sliding Patio door frame?
It is not recommended to apply the DIY approach here. If you want to replace your Patio Doors, please get in touch with your installers.
How to install Patio Doors?
If you are shopping for new sliding Patio Doors, Ecoline Windows is here to deliver and install the best units for your house.
